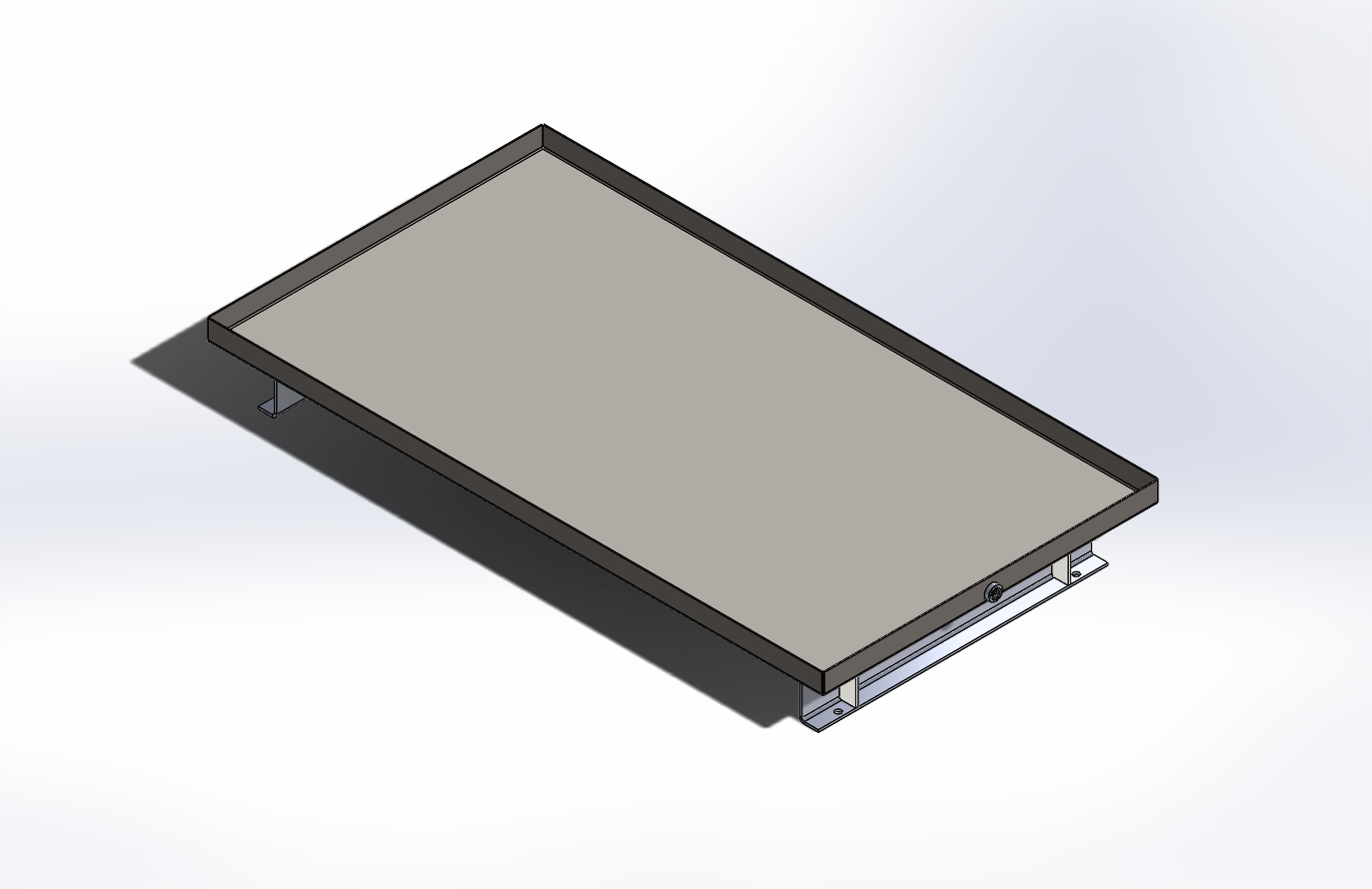

CONTAINMENT STAND
Each (CST) Containment stand Includes:
Our Standard Containment stand (CST) features: Capacity to contain reservoirs from 10 Gallons to 400 Gallons.
Risers to give underbody clearance.
3/4" Npt Drain.
Prime Painted gray.
Four (4) Weldable mounting pads shipped loose.
CST can be offered in both Carbon Steel and Stainless steel.
CONTAINMENT STAND
| Part number | STEP | Capacity (gals) | A | B | C | D | E | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|
| CST10 | STEP | 10 | 28.00 | 24.00 | 20.75 | 13.50 | 19.00 | 59.00 | |
| CST15 | STEP | 15 | 32.00 | 24.00 | 24.75 | 13.50 | 19.00 | 62.00 | |
| CST20 | STEP | 20 | 36.00 | 24.00 | 28.75 | 13.50 | 19.00 | 66.00 | |
| CST30 | STEP | 30 to 50 | 42.00 | 30.00 | 34.75 | 19.50 | 25.00 | 87.00 | |
| CST60 | STEP | 60 | 54.00 | 33.00 | 46.75 | 22.50 | 28.00 | 119.00 | |
| CST80 | STEP | 80 to 100 | 66.00 | 33.00 | 57.75 | 22.50 | 28.00 | 140.00 | |
| CST120 | STEP | 120 | 66.00 | 36.00 | 58.75 | 25.50 | 31.00 | 153.00 | |
| CST200 | STEP | 200 to 300 | 78.00 | 42.00 | 70.75 | 31.50 | 37.00 | 207.00 | |
| CST400 | STEP | 400 | 78.00 | 54.50 | 71.00 | 43.00 | 49.50 | 249.00 |
