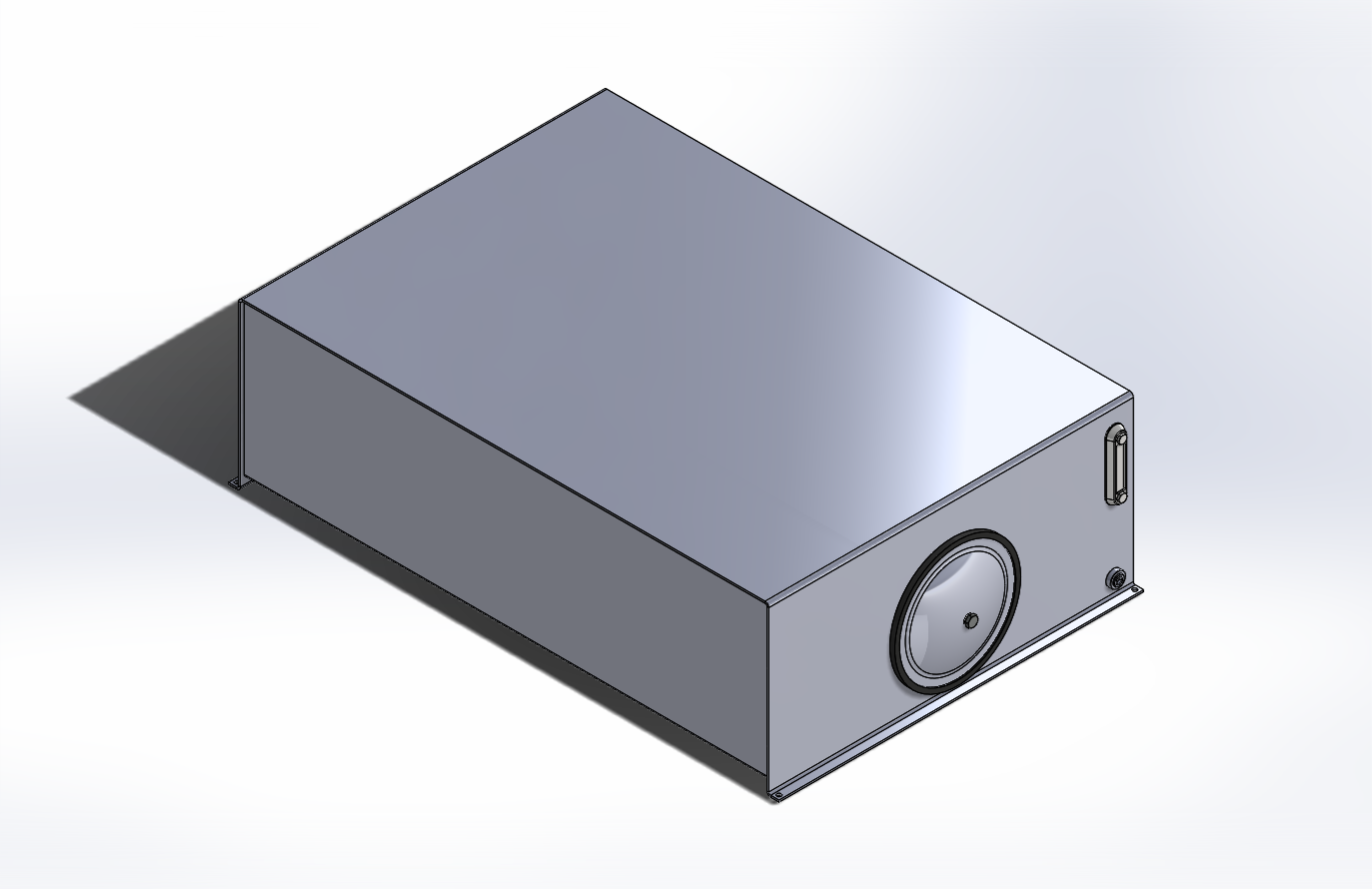

HORIZONTAL WELDED TOP
Each (PCHWT) Reservoir Includes:
1. Includes one (1) 5” oil & temp sight gauge.
2. Includes two (2) steel end covers.
3. Baffle with cutouts to enhance fluid circulation.
4. ¾” drain with plug.
5. The exterior of the reservoir is prime painted with oil-based primer.
6. The interior is treated with rust-inhibiting oil to prevent corrosion.
Capacities and Modifications
Capacity ranges from 10 Gallons to 100 Gallons.
Can be offered without paint.
All seals are Buna-n
Standard industry guidelines for hydraulic systems recommend keeping the maximum operating temperature below 180°F (82°C). However, the materials used to construct the reservoirs are designed to function effectively within a temperature range of -40°F to 212°F (-40°C to 100°C).
HORIZONTAL WELDED TOP
| Part number | STEP | Capacity (gals) | A | B | C | D | E | F | G | H | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PCHWT10 | STEP | 10 | 20.00 | 12.25 | 14.00 | 22.25 | 21.38 | 13.13 | 7.00 | 0.63 | 54.00 | |
| PCHWT20 | STEP | 20 | 24.00 | 14.00 | 18.00 | 26.25 | 25.38 | 17.13 | 9.00 | 0.75 | 82.00 | |
| PCHWT30 | STEP | 30 | 36.00 | 14.00 | 18.00 | 38.25 | 37.38 | 17.13 | 9.00 | 0.75 | 115.00 | |
| PCHWT40 | STEP | 40 | 36.00 | 14.00 | 24.00 | 38.25 | 37.38 | 23.13 | 12.00 | 0.75 | 136.00 | |
| PCHWT60 | STEP | 60 | 40.00 | 16.50 | 30.00 | 42.38 | 41.50 | 29.13 | 15.00 | 1.00 | 228.00 | |
| PCHWT80 | STEP | 80 | 48.00 | 16.50 | 30.00 | 50.38 | 49.50 | 29.13 | 15.00 | 1.00 | 262.00 | |
| PCHWT100 | STEP | 100 | 52.00 | 16.50 | 36.00 | 54.38 | 53.50 | 35.13 | 18.00 | 1.00 | 316.00 | |
| PCHWT100T | STEP | 100T | 48.00 | 18.88 | 30.00 | 50.38 | 49.50 | 29.13 | 15.00 | 0.75 | 281.00 |
