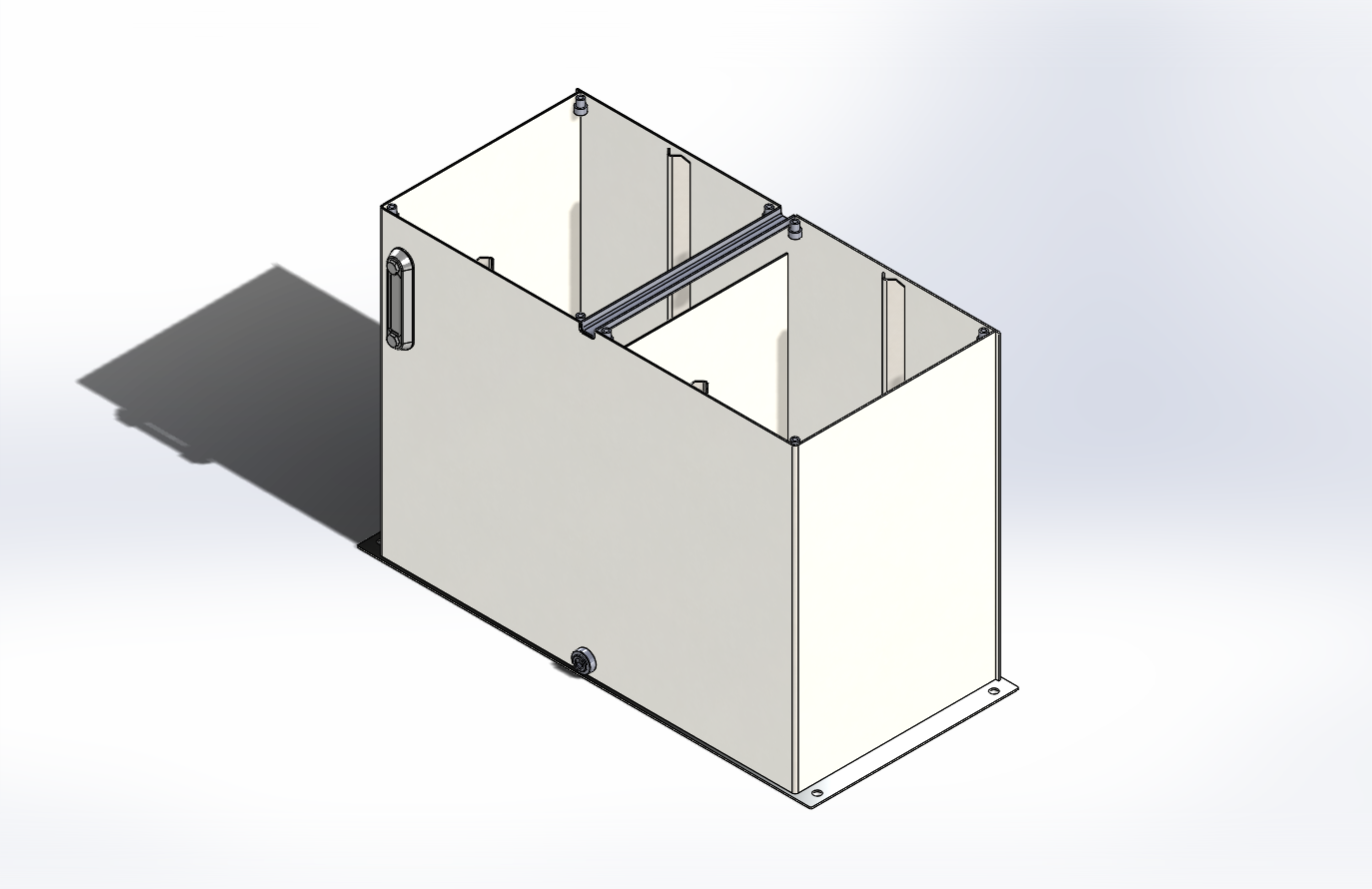

DUAL VERTICAL RESERVOIR
Each (PDVR) Reservoir Includes:
1. Includes one (1) oil & temp sight gauge.
2. Hardware to mount cover and Buna-N channel gasket.
3. The exterior of the reservoir is prime painted with oil-based primer.
4. The interior is treated with rust-inhibiting oil to prevent corrosion.
5. Covers sold separately.
Sight Gauge
PDVR Reservoir fits series two covers.
Can be offered without paint.
All seals are Buna-n
Standard industry guidelines for hydraulic systems recommend keeping the maximum operating temperature below 180°F (82°C). However, the materials used to construct the reservoirs are designed to function effectively within a temperature range of -40°F to 212°F (-40°C to 100°C).
DUAL VERTICAL RESERVOIR DV
| Part number | STEP | Capacity (gals) | A | B | C | D | E | F | G | H | J | K | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PDVR40 | STEP | 40 | 36.00 | 16.50 | 24.00 | 33.00 | 16.00 | 34.50 | 16.00 | 14.00 | 8.00 | 21.00 | 121.00 | |
| PDVR60 | STEP | 60 | 36.00 | 16.50 | 36.00 | 33.00 | 16.00 | 34.50 | 16.00 | 14.00 | 88.00 | 33.00 | 171.00 |
