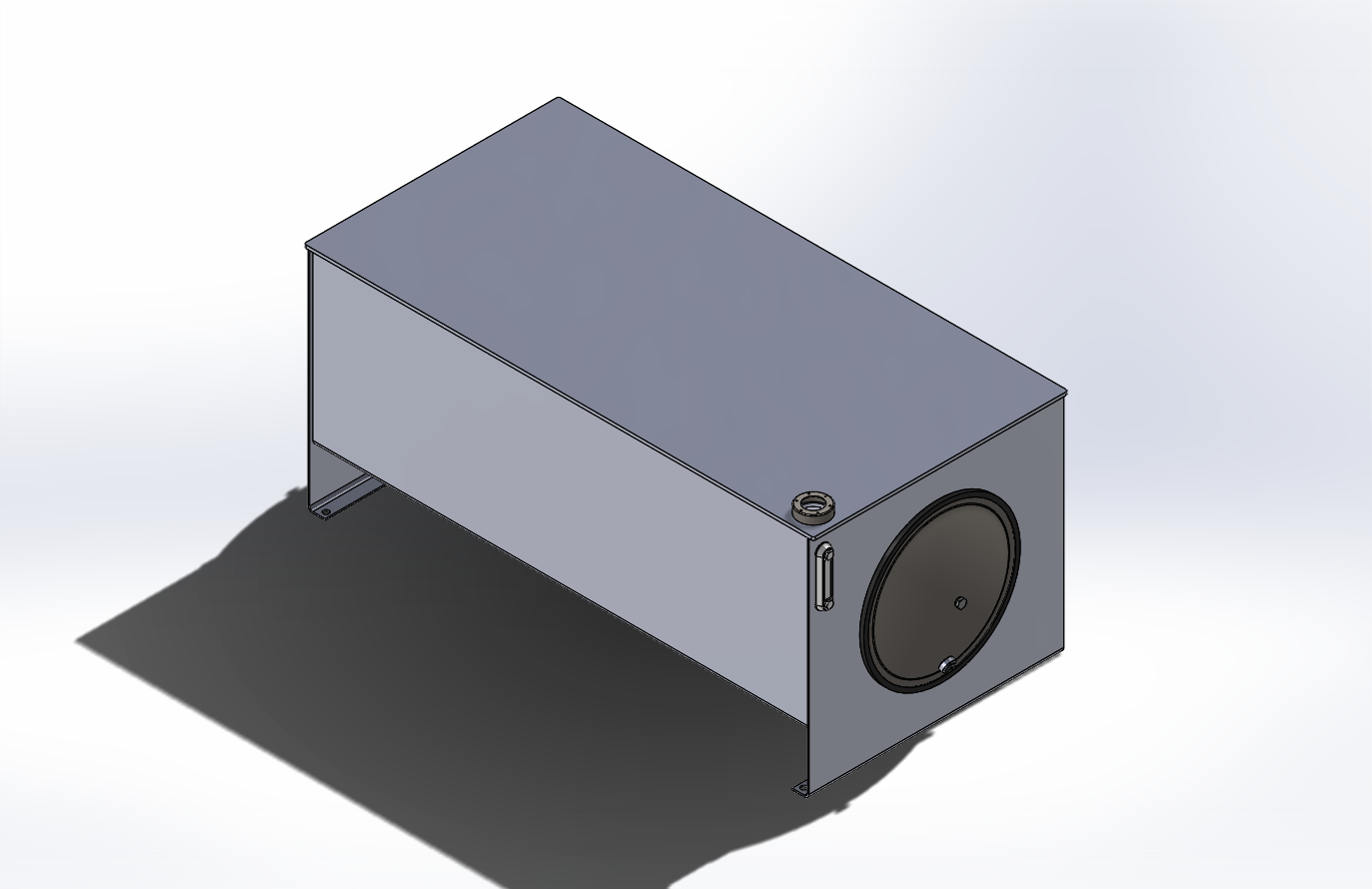

PJIC REMOVABLE BAFFLE
Each (PJICRB) Reservoir Includes:
1. Includes one (1) Oil & temp sight gauge
2. Equipped with one (1) riser and a filler breather featuring a bayonet-style 40-micron filter.
3. Comes with two (2) steel access covers, (1) cover includes ¾” NPT drain with Buna-n gasket.
4. Baffle with cutouts to enhance fluid circulation
5. The exterior of the reservoir is prime painted with oil-based primer
6. The interior is treated with rust-inhibiting oil to prevent corrosion.
Sight Gauge descriptions
Reservoirs from 10 Gallons to 200 Gallons receive 5" Sight gauge.
Reservoirs larger than 300 Gallons to receive 10" Sight gauge.
Sight gauge and filler breather shipped loose inside of reservoir.
All seals are Buna-n
Standard industry guidelines for hydraulic systems recommend keeping the maximum operating temperature below 180°F (82°C). However, the materials used to construct the reservoirs are designed to function effectively within a temperature range of -40°F to 212°F (-40°C to 100°C).
PJIC REMOVABLE BAFFLE
| Part number | STEP | Capacity (gals) | A | B | C | D | E | Cleanout Cover | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|
| PJICRB010 | STEP | 10 | 24.00 | 18.00 | 16.00 | 14.50 | 20.25 | 12.00 | 92.00 | |
| PJICRB015 | STEP | 15 | 26.00 | 19.00 | 18.00 | 16.50 | 22.25 | 12.00 | 119.00 | |
| PJICRB020 | STEP | 20 | 32.00 | 18.00 | 21.00 | 19.50 | 28.25 | 12.00 | 132.00 | |
| PJICRB030 | STEP | 30 | 36.00 | 19.38 | 24.00 | 22.50 | 32.25 | 12.00 | 178.00 | |
| PJICRB040 | STEP | 40 | 36.00 | 21.00 | 24.00 | 22.50 | 32.25 | 12.00 | 191.00 | |
| PJICRB050 | STEP | 50 | 36.00 | 23.00 | 24.00 | 22.50 | 32.25 | 12.00 | 201.00 | |
| PJICRB060 | STEP | 60 | 38.00 | 25.00 | 25.00 | 23.50 | 34.25 | 18.00 | 252.00 | |
| PJICRB080 | STEP | 80 | 47.00 | 26.88 | 30.00 | 28.50 | 43.25 | 18.00 | 341.00 | |
| PJICRB100 | STEP | 100 | 47.00 | 29.00 | 30.00 | 28.50 | 43.25 | 18.00 | 362.00 | |
| PJICRB120 | STEP | 120 | 60.00 | 31.00 | 30.00 | 28.50 | 56.25 | 18.00 | 481.00 | |
| PJICRB150 | STEP | 150 | 60.00 | 31.00 | 30.00 | 28.50 | 56.25 | 18.00 | 509.00 | |
| PJICRB200 | STEP | 200 | 72.00 | 29.00 | 36.00 | 34.50 | 68.25 | 18.00 | 792.00 | |
| PJICRB300 | STEP | 300 | 82.00 | 29.00 | 48.00 | 46.50 | 78.25 | 18.00 | 1221.00 |
