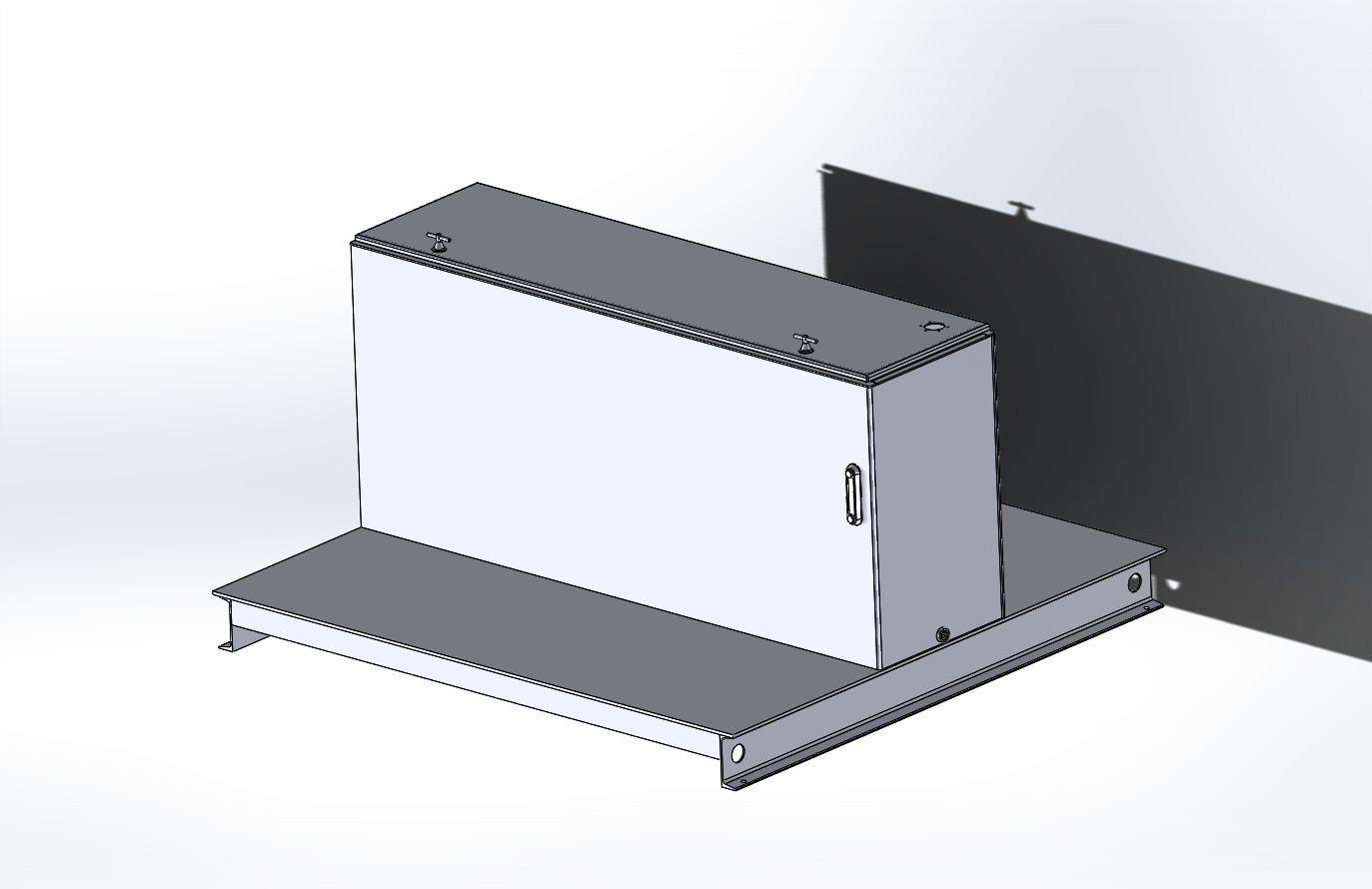

T SHAPED HINGED COVER
Each (PLT) Reservoir Includes:
1. Includes one (1) Oil & temp sight gauge.
2. Features cut out on cover in lieu of riser for Filler breather mounting. Filler breather featuring a bayonet-style 40-micron filter.
3. Includes two (2) Baffles with cutouts to enhance fluid circulation.
4. Capacities range from 10 Gallon to 150 Gallons to include two (2) T-handles while capacities Larger than 200 receive Three (3) T-handles.
5. The exterior of the reservoir is prime painted with oil-based primer.
6. The interior is treated with rust-inhibiting oil to prevent corrosion.
Sight Gauge & Filler breather
Reservoirs from 10 Gallon to 200 Gallon to include 5” Sight Gage .
Reservoirs from 300 gallon Larger to include 10” Sight Gage.
Sight Gauge and Filler Breather shipped loose inside reservoir.
All seals are Buna-n
Standard industry guidelines for hydraulic systems recommend keeping the maximum operating temperature below 180°F (82°C). However, the materials used to construct the reservoirs are designed to function effectively within a temperature range of -40°F to 212°F (-40°C to 100°C).
T SHAPED HINGED COVER
| Part number | STEP | Capacity (gals) | A | B | C | D | E | F | G | H | I | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PLT-060 | STEP | 60 | 58.00 | 48.00 | 35.88 | 46.25 | 53.50 | 20.63 | 16.00 | - | 16.75 | 511.00 | |
| PLT-080 | STEP | 80 | 60.00 | 66.00 | 35.74 | 64.25 | 55.44 | 21.81 | 15.50 | 15.50 | 16.38 | 847.00 | |
| PLT-100 | STEP | 100 | 65.13 | 66.00 | 38.74 | 58.25 | 60.63 | 22.88 | 16.00 | - | 19.38 | 892.00 | |
| PLT-120 | STEP | 120 | 68.13 | 72.00 | 38.94 | 70.25 | 63.38 | 25.38 | 16.00 | - | 19.38 | 1096.15 | |
| PLT-150 | STEP | 150 | 76.13 | 72.00 | 38.94 | 70.25 | 71.38 | 25.38 | 16.00 | - | 25.38 | 1208.00 | |
| PLT-200 | STEP | 200 | 78.13 | 84.13 | 41.94 | 82.38 | 73.38 | 26.38 | 16.00 | 16.00 | 25.38 | 1454.00 | |
| PLT-300 | STEP | 300 | 77.75 | 84.00 | 53.87 | 82.25 | 73.25 | 26.19 | 16.00 | 16.00 | 25.00 | 1772.00 |
