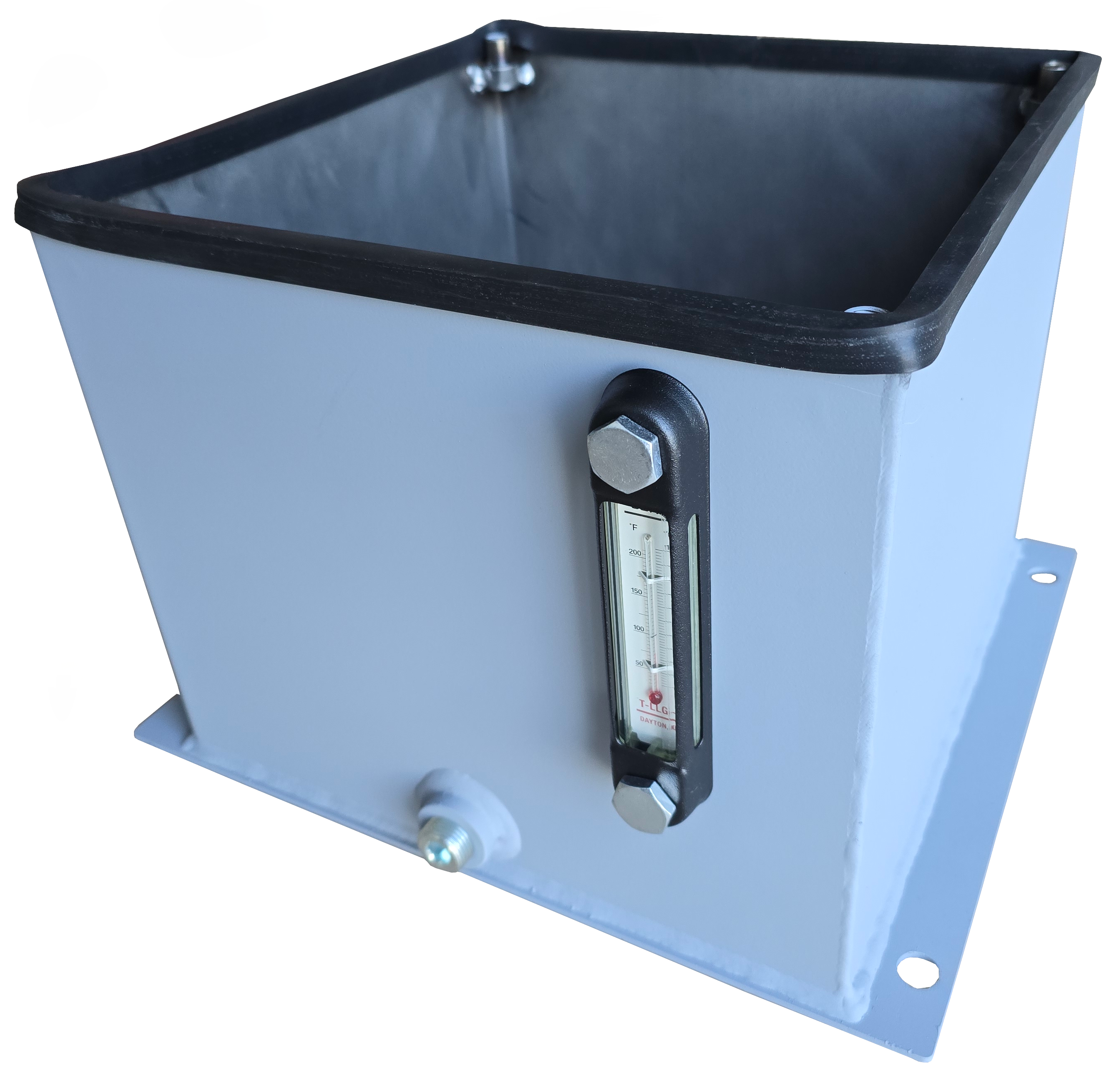

VERTICAL RESERVOIR
Each (PCV) Reservoir Includes:
1. Includes one (1) oil & temp sight gauge.
2. Hardware to count cover.
3. Buna-N Gasket bordering top edge.
4. The exterior of the reservoir is prime painted with oil-based primer.
5. The interior is treated with rust-inhibiting oil to prevent corrosion.
6. Covers sold separately.
Capacities and Modifications
Capacity ranges from 10 Gallons to 100 Gallons.
Can be offered without paint.
All seals are Buna-n
Standard industry guidelines for hydraulic systems recommend keeping the maximum operating temperature below 180°F (82°C). However, the materials used to construct the reservoirs are designed to function effectively within a temperature range of -40°F to 212°F (-40°C to 100°C).
VERTICAL RESERVOIR
| Part number | STEP | Capacity (gals) | A | B | C | D | E | F | G | H | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PCV-05 | STEP | 5 | 12.00 | 10.00 | 12.50 | 14.50 | 0.50 | 1.25 | 13.50 | 10.00 | 21.00 | |
| PCV-10 | STEP | 10 | 12.00 | 19.81 | 12.50 | 14.50 | 0.50 | 1.25 | 13.50 | 10.00 | 35.00 | |
| PCV-10-12 | STEP | 10 | 16.00 | 11.88 | 16.50 | 19.00 | 0.75 | 1.25 | 17.50 | 14.00 | 34.00 | |
| PCV-10-15 | STEP | 10 | 16.00 | 15.00 | 16.50 | 19.00 | 0.75 | 1.25 | 17.50 | 14.00 | 40.00 | |
| PCV-20-18 | STEP | 20 | 17.50 | 18.13 | 18.00 | 20.50 | 0.75 | 1.50 | 19.00 | 15.00 | 51.00 | |
| PCV-20-24 | STEP | 20 | 16.00 | 23.81 | 16.50 | 19.00 | 0.75 | 1.25 | 17.50 | 14.00 | 56.00 | |
| PCV-30-26 | STEP | 30 | 17.50 | 26.13 | 18.00 | 20.50 | 0.75 | 1.50 | 19.00 | 15.00 | 67.00 | |
| PCV-30-36 | STEP | 30 | 16.00 | 35.81 | 16.50 | 19.00 | 0.75 | 1.25 | 17.50 | 14.00 | 79.00 | |
| PCV-40 | STEP | 40 | 17.50 | 34.13 | 18.00 | 20.50 | 0.75 | 1.50 | 19.00 | 15.00 | 84.00 |
