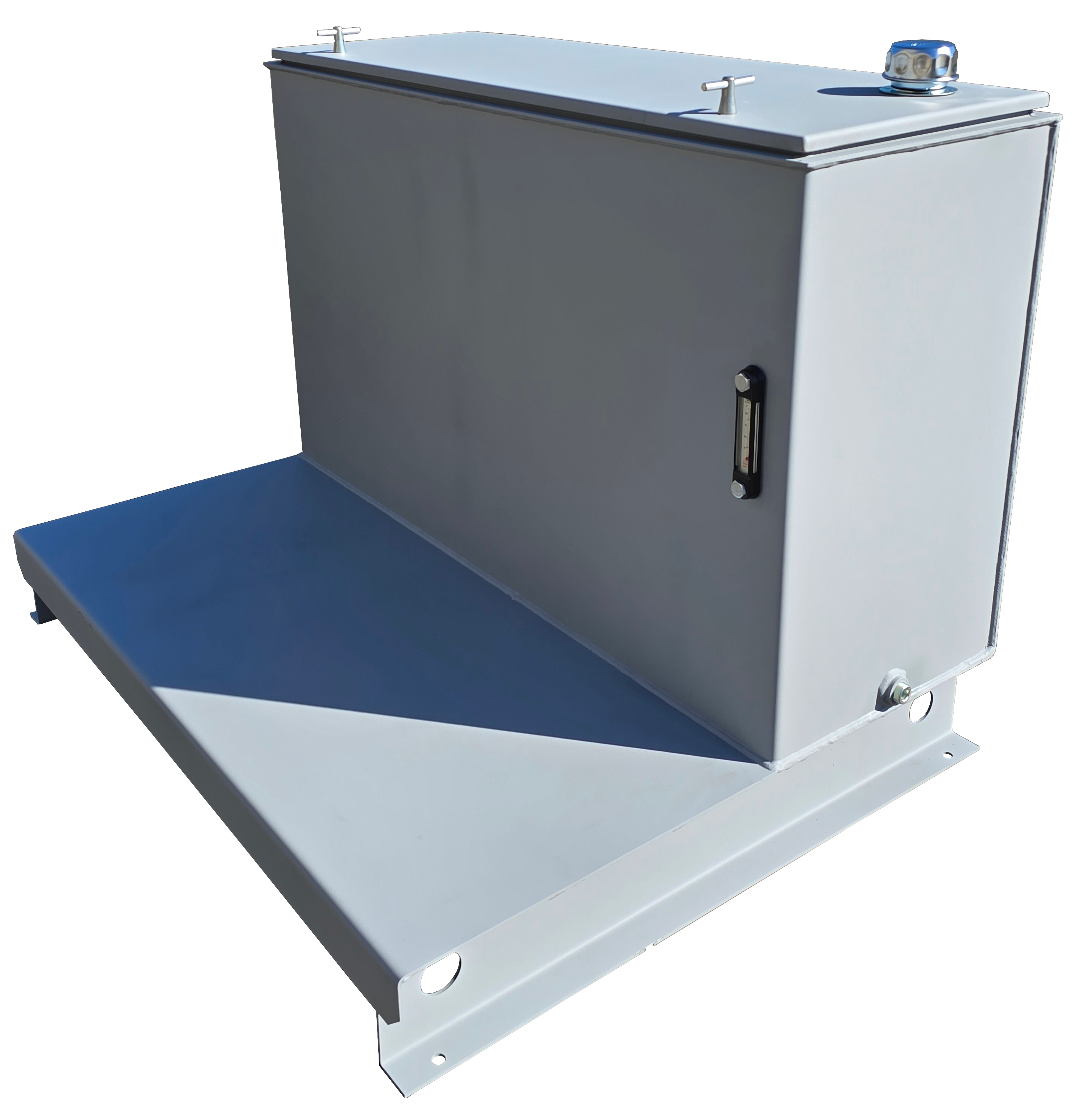

L SHAPED HINGED COVER
Each (PL) Reservoir Includes:
1. Includes one (1) Oil & temp sight gauge.
2. Features cut out on cover in lieu of riser for Filler breather mounting. Filler breather featuring a bayonet-style 40-micron filter.
3. Includes two (2) Baffles with cutouts to enhance fluid circulation.
4. Capacities from 10 Gallons up to 150 Gallons to include two (2) T-Handles. Capacities larger than 200 Gallon to include Three (3) T-Handles
5. The exterior of the reservoir is prime painted with oil-based primer.
6. The interior is treated with rust-inhibiting oil to prevent corrosion.
Sight Gauge
Reservoirs from 10 Gallon to 200 Gallon to include 5" Sight Gage.
Reservoirs larger than 300 Gallons to receive 10" Sight gauge.
Sight Gauge and Filler Breather shipped loose inside reservoir.
All seals are Buna-n
Standard industry guidelines for hydraulic systems recommend keeping the maximum operating temperature below 180°F (82°C). However, the materials used to construct the reservoirs are designed to function effectively within a temperature range of -40°F to 212°F (-40°C to 100°C).
L SHAPED HINGED COVER
| Part number | STEP | Capacity (gals) | A | B | C | D | E | F | G | H | I | J | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PL-20 | STEP | 20 | 30.00 | 27.63 | 25.54 | 6.00 | 13.50 | 13.88 | 12.00 | - | 28.25 | 23.00 | 176.00 | |
| PL-30 | STEP | 30 | 36.00 | 30.63 | 29.54 | 6.00 | 13.75 | 16.63 | 12.00 | - | 34.25 | 26.00 | 231.00 | |
| PL-45 | STEP | 45 | 54.00 | 56.12 | 29.54 | 6.00 | 13.75 | 17.63 | 12.00 | 12.00 | 52.25 | 31.00 | 239.00 | |
| PL-60 | STEP | 60 | 48.00 | 68.12 | 35.64 | 6.00 | 16.75 | 20.63 | 16.00 | - | 46.25 | 33.00 | 305.00 | |
| PL-80 | STEP | 80 | 66.00 | 38.56 | 35.64 | 6.00 | 16.38 | 21.94 | 15.50 | 15.50 | 64.25 | 34.00 | 647.00 | |
| PL-100 | STEP | 100 | 60.00 | 42.50 | 38.74 | 6.00 | 19.00 | 22.88 | 16.00 | - | 58.25 | 38.00 | 681.00 | |
| PL-120 | STEP | 120 | 72.00 | 42.56 | 39.06 | 6.00 | 19.00 | 22.94 | 16.00 | 16.00 | 70.25 | 38.00 | 820.00 | |
| PL-150 | STEP | 150 | 72.00 | 50.56 | 38.94 | 6.00 | 25.38 | 24.94 | 16.00 | - | 70.25 | 46.00 | 919.00 | |
| PL-200 | STEP | 200 | 84.00 | 51.56 | 42.06 | 6.00 | 25.38 | 25.94 | 16.00 | 16.00 | 82.25 | 47.00 | 1111.00 | |
| PL-300 | STEP | 300 | 84.00 | 60.00 | 54.06 | 6.00 | 25.38 | 34.38 | 16.00 | 16.00 | 82.25 | 55.50 | 1513.00 | |
| PL-400 | STEP | 400 | 84.00 | 60.00 | 54.06 | 6.00 | 28.38 | 31.38 | 16.00 | 16.00 | 82.25 | 55.50 | 1535.00 |
