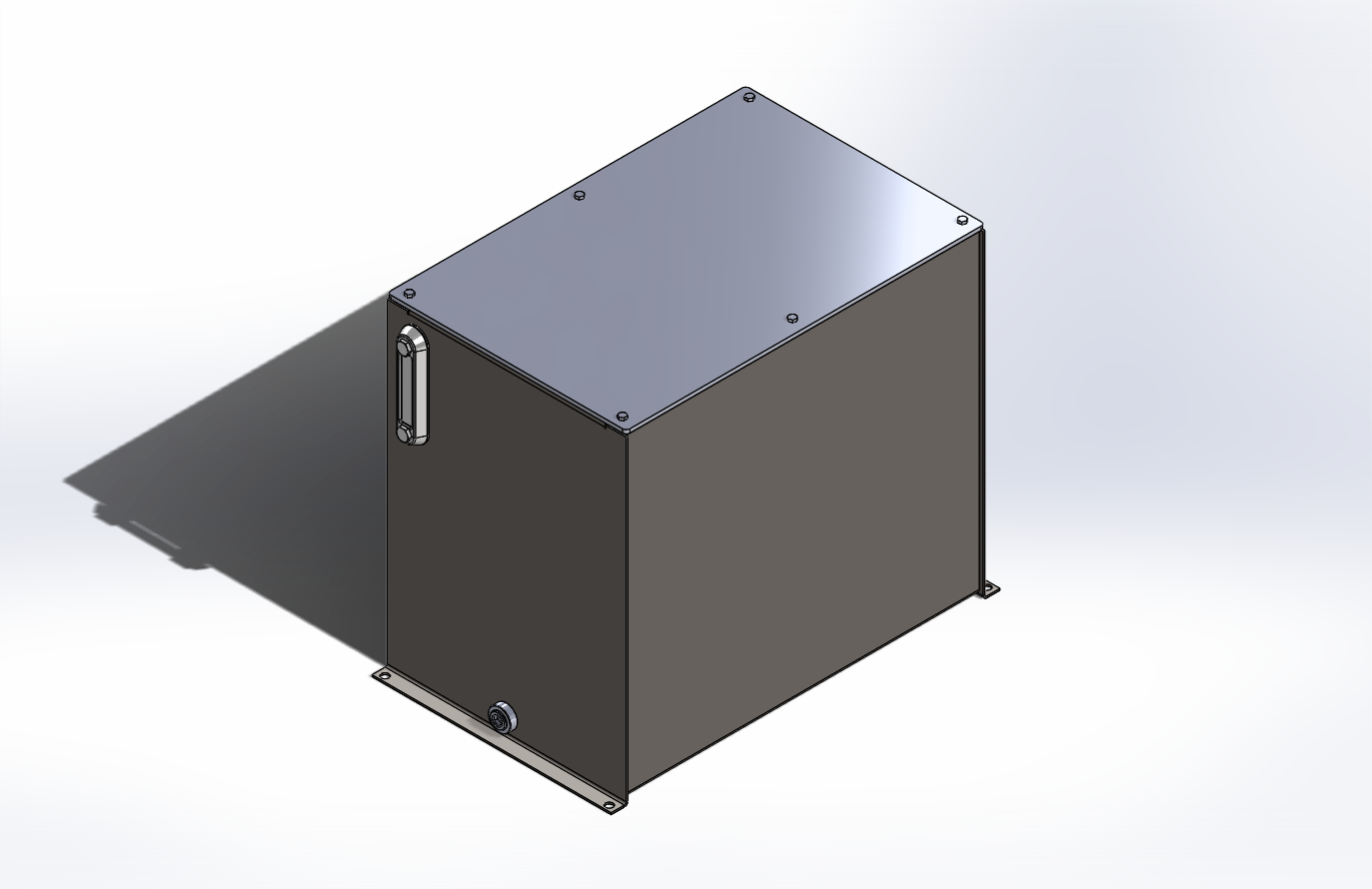

HORIZONTAL BOLTED TOP
Each (PCHRT) Reservoir Includes:
1. Includes one (1) 5” oil & temp sight gauge.
2. Baffle with cutouts to enhance fluid circulation.
3. ¾” drain with plug.
4. The exterior of the reservoir is prime painted with oil-based primer.
5. The interior is treated with rust-inhibiting oil to prevent corrosion.
Capacities and Modifications
Capacity ranges from 10 Gallons to 40 Gallons.
Can be offered without paint, baffle, and/or both.
All seals are Buna-n
Standard industry guidelines for hydraulic systems recommend keeping the maximum operating temperature below 180°F (82°C). However, the materials used to construct the reservoirs are designed to function effectively within a temperature range of -40°F to 212°F (-40°C to 100°C).
HORIZONTAL BOLTED TOP
| Part number | STEP | Capacity (gals) | A | B | C | D | E | F | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|
| PCHRT10 | STEP | 10 | 24.00 | 16.00 | 9.75 | 25.25 | 15.00 | 8.00 | 46.00 | |
| PCHRT20 | STEP | 20 | 24.00 | 16.00 | 15.75 | 25.25 | 15.00 | 8.00 | 94.00 | |
| PCHRT30 | STEP | 30 | 24.00 | 16.00 | 21.75 | 25.25 | 15.00 | 8.00 | 114.00 | |
| PCHRT40 | STEP | 40 | 24.00 | 16.00 | 27.75 | 25.25 | 15.00 | 8.00 | 135.00 |
